Ask for Prices
2+1 Pocket Multi currencies Fitness Sorter
Feature:
- It adopts the world’s leading image processing technology, fuzzy intelligent control technology and precision machinery
manufacturing technology, which makes sort and count accurate and reliable. - It adopts user-friendly intelligent design, dual liquid crystal display, which is easy to operate.
- It has a variety of counting functions. The working mode can be selected based on the actual needs.
- It adopts the counterfeit detecting technology such as metal thread, magnetic ink, magnetic code and others. It can give an alarm
upon the counterfeit banknotes. - Easy upgrade. Dual CPU modular structure is used for identification and control system, which makes product upgrade
convenient and quick. - Easy maintenance.
- High efficiency. 54,000 pieces of banknotes can be handled each hour and its speed is increased by 25%.
- There is a special mode for filling ATM banknotes, which is convenient, quick, accurate and efficient.
- It has banknote serial number printing function, which is convenient to record the banknote information.
- Its size (416L*314W*370H) is 37% smaller than the previous machine with the same function, which takes up small space. Its
weight is lower. With compact structure and powerful function, it can be widely used in the teller, sorting center and other places. - The hopper position is low (around 280mm high), which makes it difficult to get tired even after working for a long time, and it is
easy to operate.

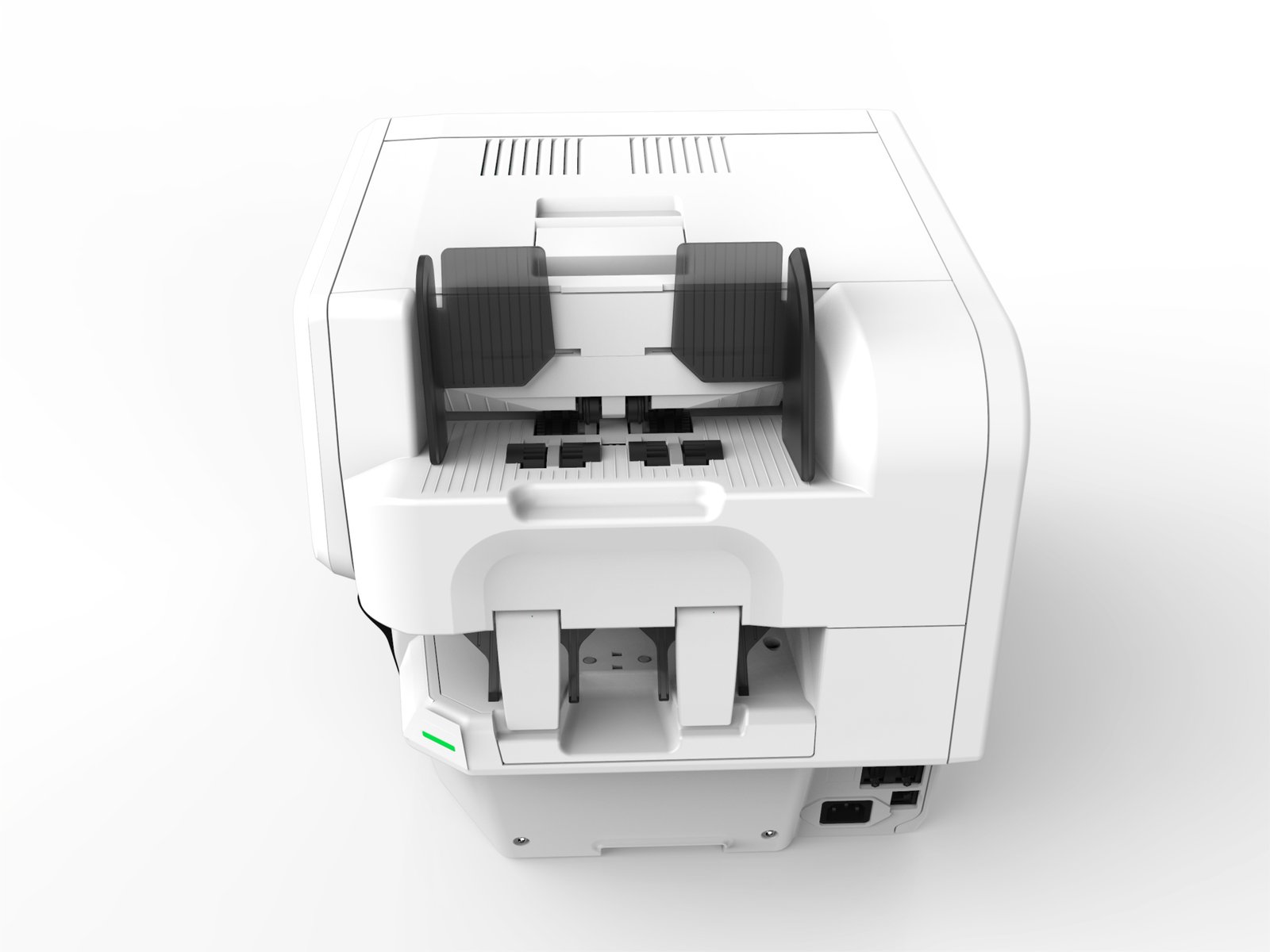

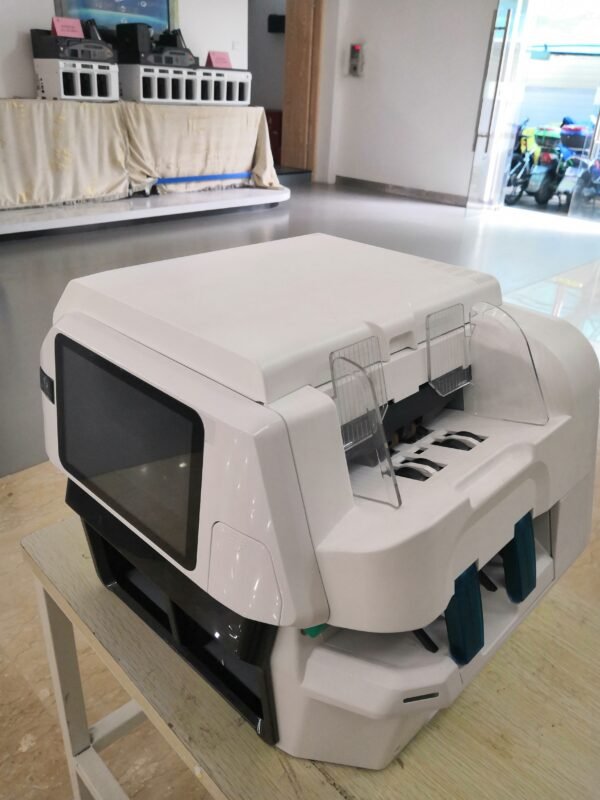

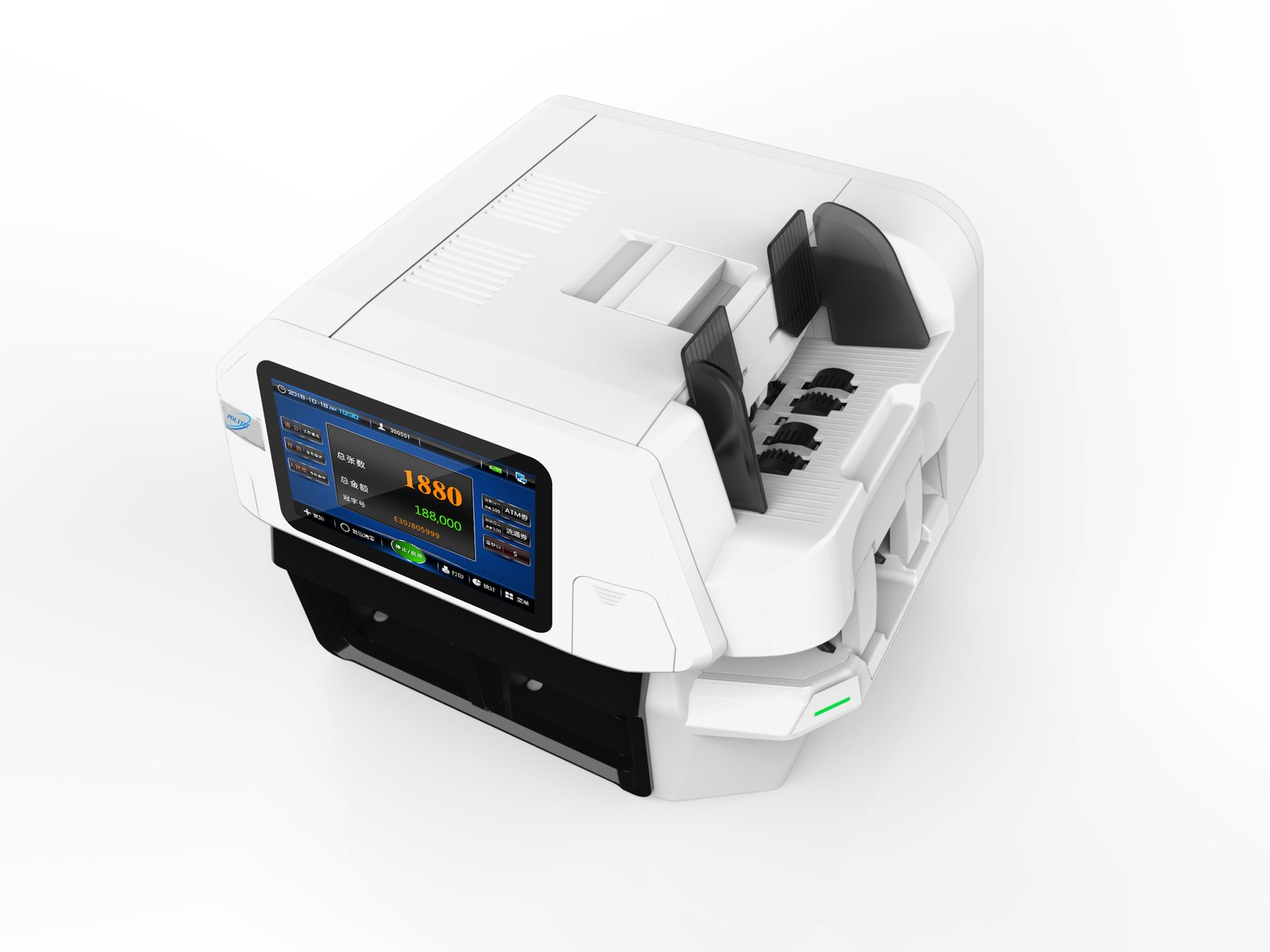

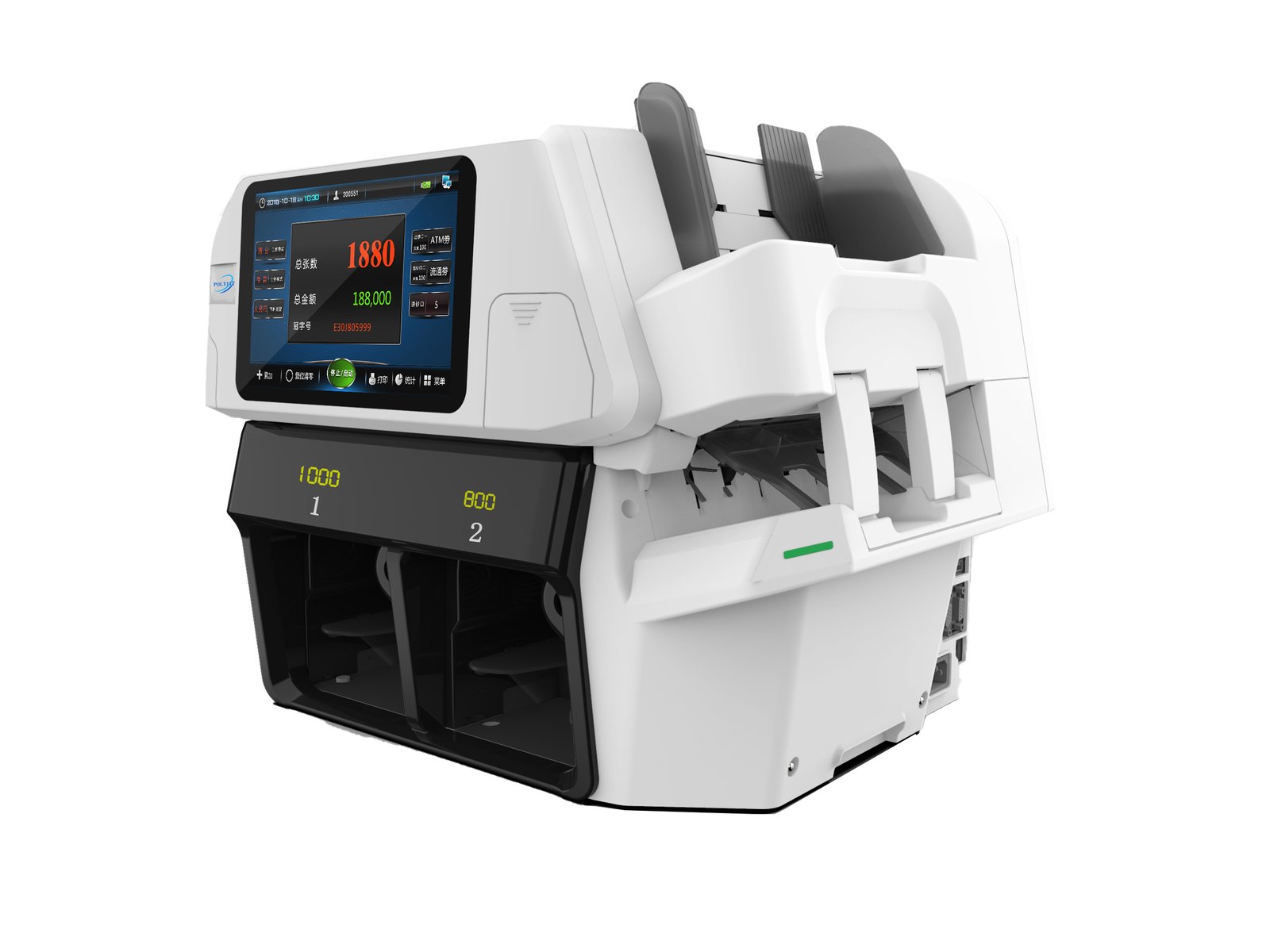

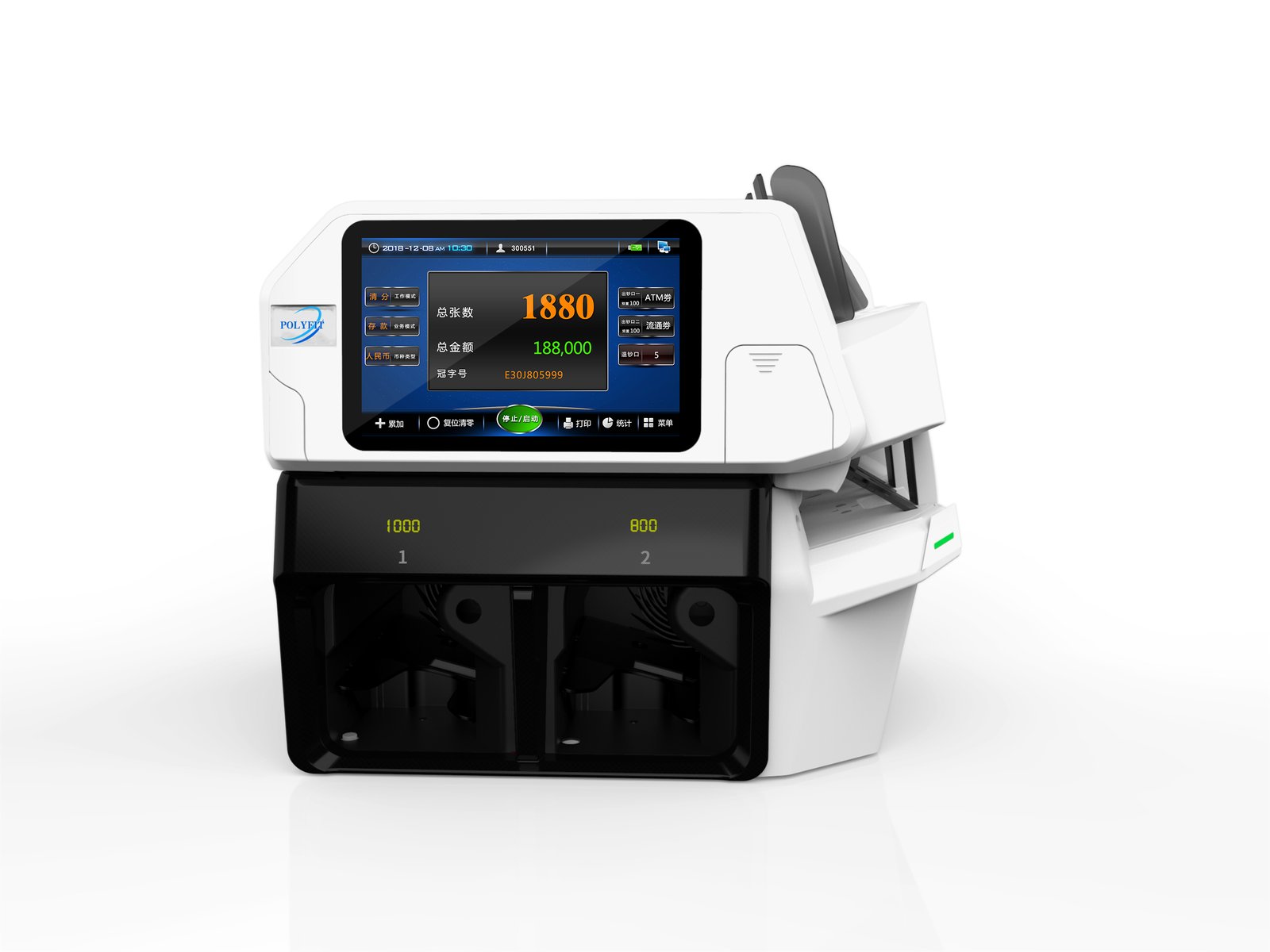

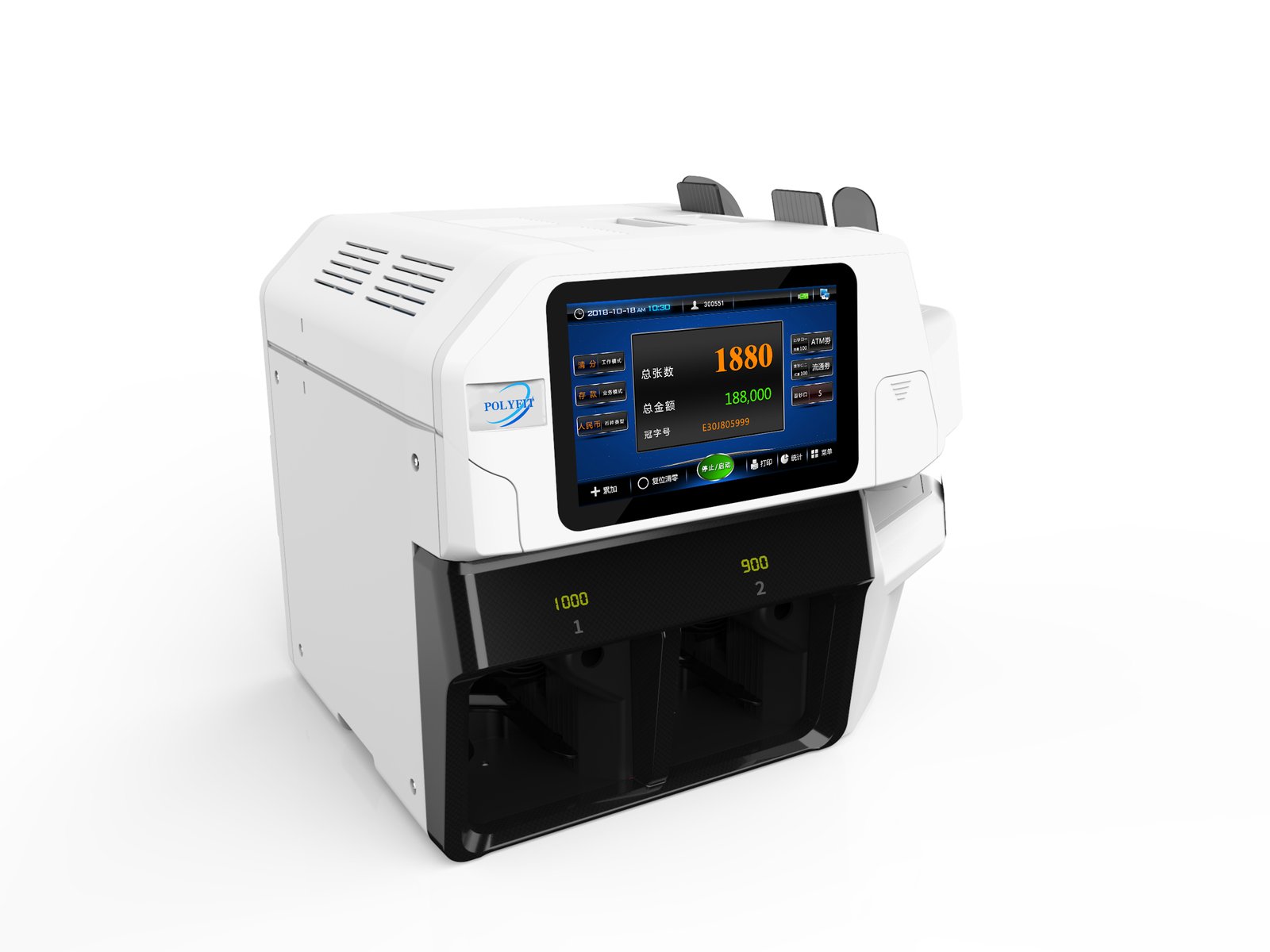

Bank Grade Professional Fitness Banknote Sorting Machine
Specifications:
Model: F321
Available Currency： old and new version of RMB and can be upgraded to multi-currency
Counterfeit Detecting Method： UV/magnetic ink/metal thread/IR/penetration/spectrum
Sorting Speed：more than 900pcs/min
Number of Pocket： 4pcs (1 hopper, 2 stackers, 1 reject pocket)
Pocket Capacity： hopper: 500pcs; stacker: 200pcs; reject pocket: 150pcs
Scanning Recognition Technology：Gray scale of image: 256 level; Optional definition: 200dpi; Artificial neural network image recognition technology
Display Feature：digital display with high brightness 8′ LCD with high resolution 1280*800 multi-point capacitive touch Animation displays the error position and text shows the resolution
Technical Feature：detect banknotes with damage, hole, dog-ear, graffiti, grease, tapedetect altered or composite banknoteWhen it is turned on, the machine can do self-checking and display error code.fitness/version/orientation sortingSorting sensitivity can be adiusted and stored automatically.serial number recognition printing functionFactory settings can be restored.
Upgrading：The program can be upgrade online or by U-disk.
PC Interface：USB2.0; RS-232 port; ethernet interface
Power Supply：220V(1+10%)50Hz(1+5%)
Power：200W
Rising Temperature：10℃
Noise：<70dB
Appearance Dimension：416mmX314mmX370mm
Weight：27Kg
