3+1 Pocket Multi currencies Fitness Sorter
Feature:
- Fitness Sorting: The old & new degree is adjustable as you need. The function is stable and reliable for sorting out unfit notes, fit notes and ATM notes. Improve work efficiency.
- Denomination Sorting : Banknotes of different denominations will come out from corresponding stacker without manual intervention. Fast and quick.
- Orientation Sorting : Banknotes of different orientations will be arranged in the same direction after sorting.
Version Sorting : Sort banknotes of different versions. - Recognize Serial Number : Save serial number and its image in real time .
- Batch Setting : Each stacker can do batch setting. The maximum quantity is 500 pieces.
- Counterfeit Identification Mode: banknote size, visible light reflection, visible light perspective, infrared reflection, infrared perspective, fluorescence, magnetism, magnetic characteristics of security lines, security thread (film) optical features, fine hollowing, watermark features, serial numbers, thickness features, and other authentication methods.
- The specific identification ability shall be based on the financial standard test report . Optional multi-currency function.
Add peripheral expansion capability, which can mount various peripheral products such as drives, large-screen displays, keyboards, printers, scanners, etc. - Add the 8-inch large touch screen, which is simpler, more convenient and more interactive, and has super human-computer interaction ability.
- Use high-performance LINUX operating system that has more stable performance and smoother operation

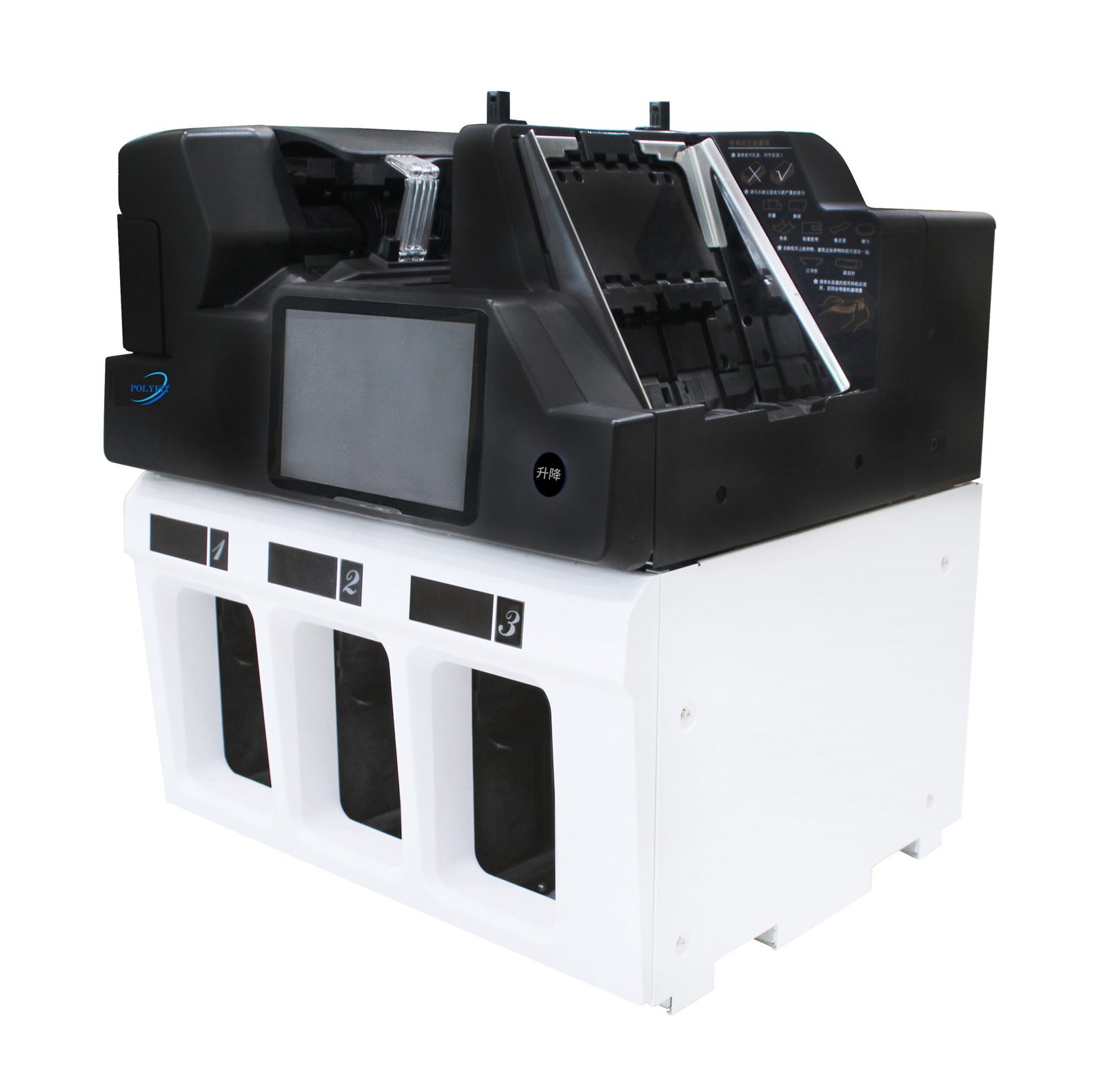

Bank Grade Professional Fitness Banknote Sorting Machine
Specifications:
Model: F431
Available Currency： old and new version of RMB and can be upgraded to multi-currency
Counterfeit Detecting Method：White light image/IR image/multispectral image/UV optical characteristics/IR optical characteristics /fluorescence/security thread/magnetic characteristics/multi-point thickness measurement, etc.
Sorting Speed：more than 720pcs/min
Number of Pocket： 5pcs (1 hopper, 3 stackers, 1 reject pocket)
Pocket Capacity： hopper: 1200pcs; stacker: 500pcs; reject pocket: 150pcs
Scanning Recognition Technology：Gray scale of image: 256 level; Optional definition: 200dpi; Artificial neural network image recognition technology
Display Feature：digital display with high brightness 8′ LCD with high resolution 1280*800 multi-point capacitive touch Animation displays the error position and text shows the resolution
Technical Feature：detect banknotes with damage, hole, dog-ear, graffiti, grease, tape detect altered or composite banknote When it is turned on, the machine can do self-checking and display error code fitness/version/orientation sorting. Sorting sensitivity can be adjusted and stored automatically serial number recognition printing function Factory settings can be restored. It has network interconnection function and supports number storage and query.
Detection sensors: Dual CIS, IR, UV , MG , Thickness Graffiti
Upgrading：The program can be upgrade online or by U-disk.
PC Interface：USB2.0; RS-232 port; LAN;
Power Supply：220V(1+10%)50Hz(1+5%)
Power：≤ 400W
Rising Temperature：20℃
Noise：<65dB
Appearance Dimension：500x440x600(mm)
Weight：70Kg
